SIGMA ST Series Compact Ultrasonic Clamp on type flow meter without contact with the liquids.

Description
Sigma ST is very unique in its structural design. It uses a circular magnetic steel to achieve automatic connection during installation. It takes only 2-3 minutes to complete the whole process from installation to measurement. It also adopts the current popular OLED display, which makes it easy to read in low light conditions.

Sigma ST series flow meters offer users easy installation, no process downtime, no pressure loss or leak and no contamination of the medium to be measured.

Features
● With the world's most advanced time measurement chip (time resolution of SOps), a new
generation of stable flow meters has been developed
● The flow meter is fitted on the outside of the tube without additional pipe interventions required
● No expertise required, installation and measurement can be done according to the operating instructions
● No moving parts, no pressure loss. The flow meter can be installed without stopping production

Characteristics
Flow Range: 0.1 m/s~5.0 m/s
Accuracy: ±2.0%
Repeatability: 0.8%
Pipe Size: Φ6.35 ~ Φ90
Sigma ST holds statistics of daily, monthly, and annual consumption over a long period of time.
Flow Totalizer
Analogue Output: 4~20mA, Maximum load: 600Ω
Alarm Output: OCT, Upper and lower limit alarm function (optional)
Communication: RS485, support Mod bus communication protocol
Power Supply: 24 VDC
Cable Length: 2.0m
Keypad: Four light touch buttons
Screen: OLED 128*64 display screen
Units: Metric and imperial units are available, Cubic Meters(m³), Liters(L), USA Gallons(GAL)/hour, /min, Default unit setting: m³/h
Totalizer: Six bit digit
Piping Material: Stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe
Housing Material: Aluminum alloy
Environment Temp. : 0℃~50℃(32°F~122°F)
Medium Temp. : 0℃~50℃(32°F~122°F)
Environment Humidity: 0-95% relative humidity, without condensation
IP rating: IP54

Applications
Various acids, alcohols, chemical solvents, beverage, colas, water, sea water, etc.
Also used in the production to measure water and other liquids throughout the facility.

Technical Data
Model: SIGMA ST Series
Flow Range: 0.1 m/s~5.0 m/s
Accuracy: ±2.0%
Repeatability: 0.8%
Pipe Size: Φ6.35 ~ Φ90
Data Storage: Daily, monthly, and Annual. Flow Totalizer
Analog Output: 4~20mA, Maximum load: 600Ω
Alarm Output: OCT, Upper and lower limit alarm function (optional)
Communication: RS485, support Mod bus communication protocol
Power Supply: 24 VDC
Cable Length: 2.0m
Keypad: Four light touch buttons
Screen: OLED 128*64 display screen
Units: Metric and imperial units are available, Cubic Meters(m³), Liters(L), USA Gallons(GAL)/hour, /min, Default unit setting: m³/h
Totalizer: Six bit digit
Piping Material: Stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe
Case Material: Aluminum alloy
Environmental Temp.: 0℃~50℃(32°F~122°F)
Medium Temp.: 0℃~50℃(32°F~122°F)
Environment Humidity: 0-95% relative humidity, without condensation
IP rating: IP54

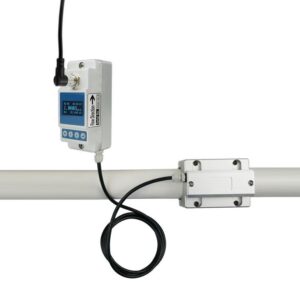

Also available with optional remote display
